What is the VMC-400 Sine O Mill?

The VMC-400 Sine O Mill is a CNC Vertical Machining Center from CadMech Engineering, built with LM guideways, servo motors & drives, and an industrial CNC controller for precision milling operations.

What controller does the VMC-400 use?

The VMC-400 Sine O Mill comes with an Industrial CNC controller driving servo motors and drives on all axes.

Does the VMC-400 include an Automatic Tool Changer?

Yes, the VMC-400 includes a 12-tool Automatic Tool Changer (ATC) with an Electro Pneumatic Geneva Mechanism, enabling multi-tool machining operations.

What is the spindle speed range of the VMC-400?

The VMC-400 spindle speed range is 60 to 6000 RPM, driven by a 3.7 kW spindle motor for versatile cutting capabilities.

What type of guideways does the VMC-400 use?

The VMC-400 uses LM guideways on all three axes (X, Y, Z), providing smooth, accurate movement with minimal friction and long-term precision.

Best Quality VMC-400 Sine O Mill CNC Vertical Machining Center At Lowest Price

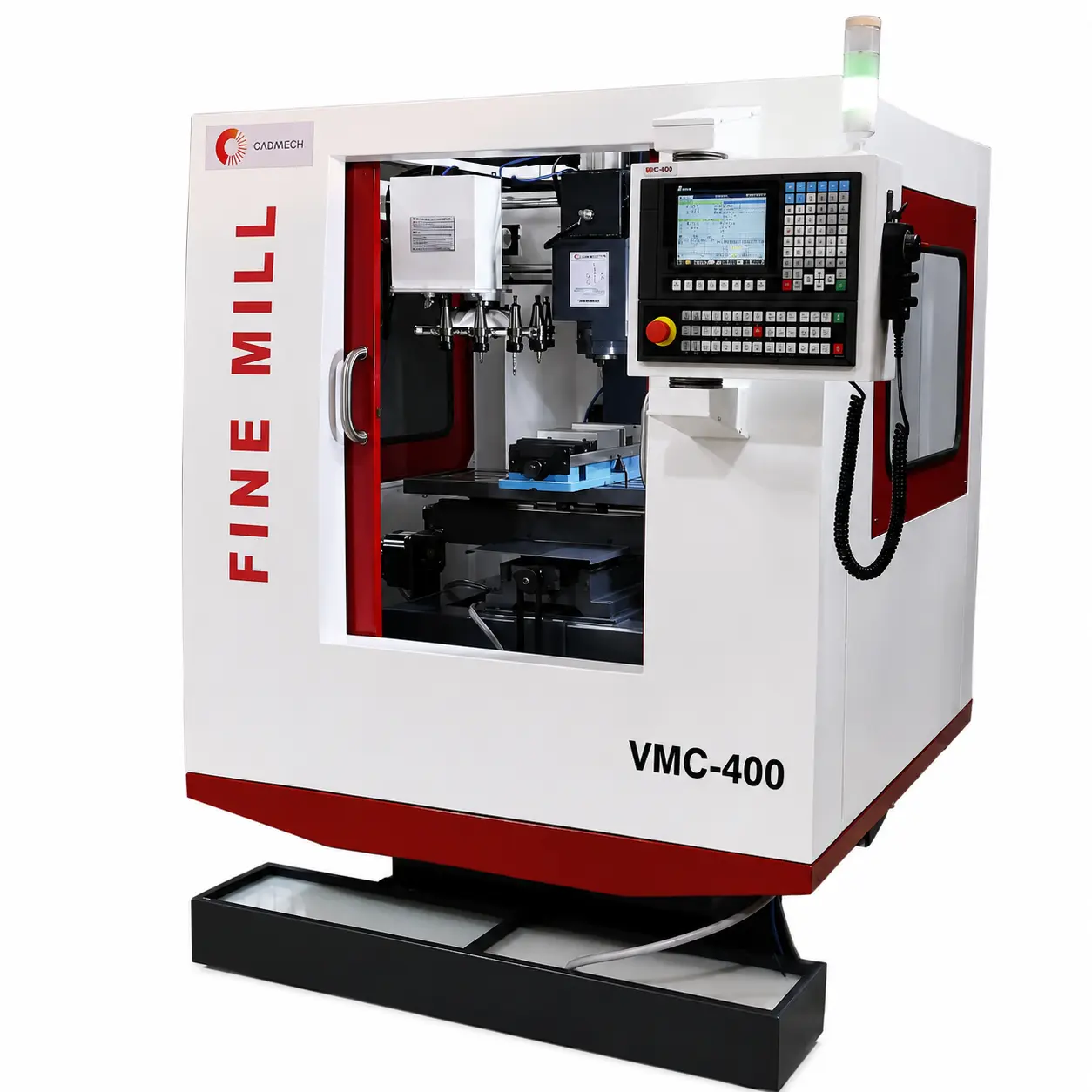

Name: VMC-400 Sine O Mill (CNC Vertical Machining Center)
Brand: CadMech
SKU: VMC-400
Rating: 5 (20 reviews)

Features:

AC servo drives
AC variable speed spindle motor
Hardended and ground ball - screws
Centralised automatic lubrication
Basic coolant system
Telescopic covers and bellow on Z-axis
Full Machine guard
Manual pulse generator

Machine Specifications:

Model	VMC-400
X Axis	: 450 mm
Y Axis	: 300 mm
Z Axis	: 400 mm
Distance from spindle nose to table top	: 50 - 450 mm
Traverse Screws	: Ball Screw
Guide Ways	: LM Guide
Table Size	: 800 x 300 mm
No. of T Slots x Size x Pitch	: 5 x 17 x 49 mm
Max. Load on table	: 120 kgs
Clamping Area	: 680 x 250 mm
Spindle bore front dia	: 100 mm
Spindle bore taper	: BT 30/BT 40
Spindle speed	: 60 - 6000 RPM
Spindle Motor power (Cont./15mins.)	: 3.7 kW
Rapid traverse rate X & Y Axes	: 10 & 10 m/min
Rapid traverse rate Z Axis	: 10 m/min
Cutting feed rate X & Y	: 1 – 5000 m/min
Cutting feed rate Z	: 1 – 5000 m/min
No. of tools	: 12 nos
Tool shank	: BT 30/ BT 40
Max. tool diameter with adjacent tool	: 20 mm
Max. tool length	: 125 mm
Max. tool weight	: 7 kg
ATC Type	: Electro Pneumatic Geneva Mechanism
ATC Motor	: 3 phase
Controller	: Industrial
Motors & Drives	: Servo
Positioning Accuracy	: 0.01 mm
Repeatability	: ± 0.005 mm
Resolution	: 0.001 mm
Min. Input Increment	: 0.001 mm
Machine Size (Front x Side)	: 1500 x 1700 mm
Machine weight (Approx)	: 1200 kg
Main Supply	: 415 V, 3 Ph, 50Hz
