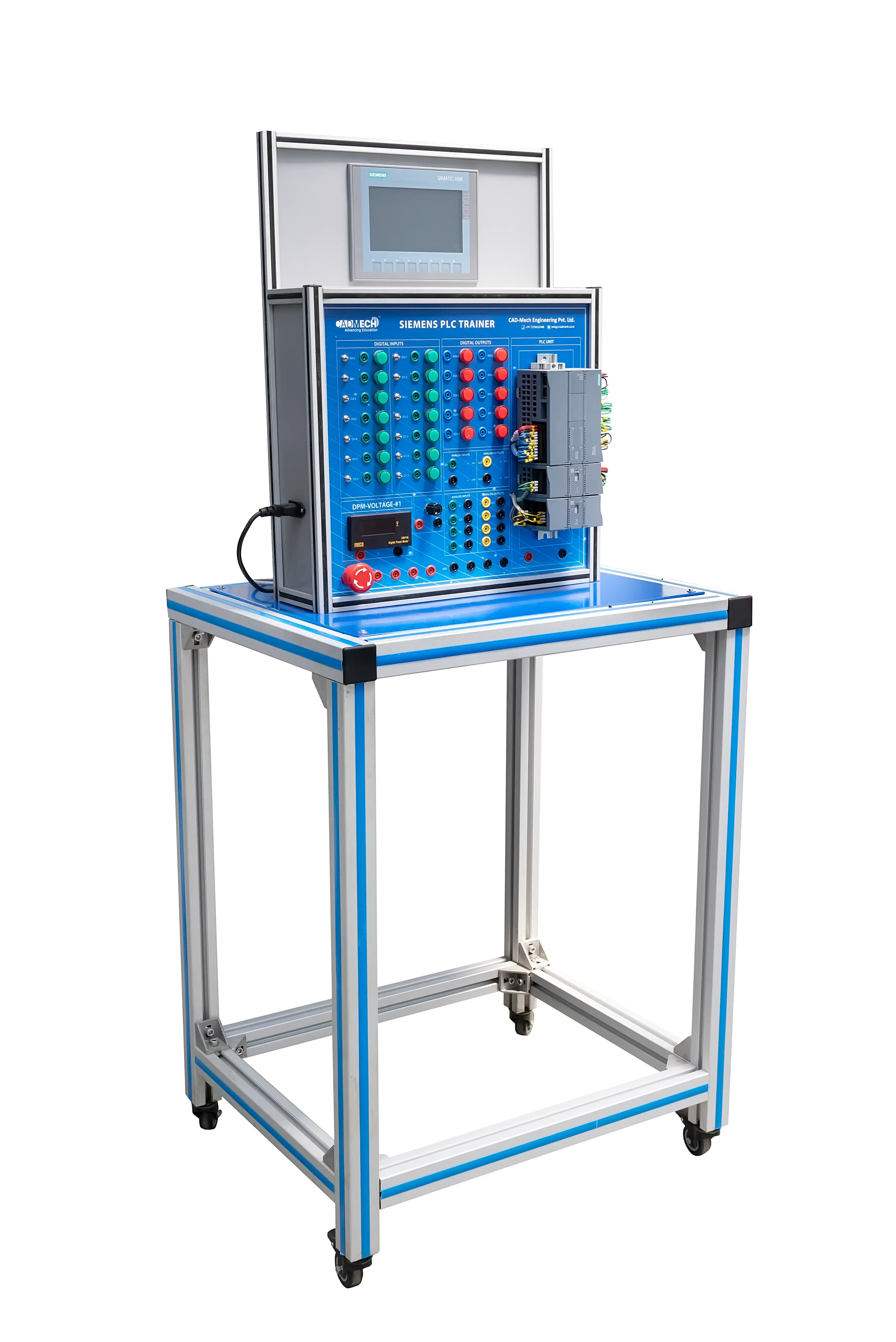

Machine Specifications:

PLC make	: Any multinational brand
Available project memory/user memory	: 25 Kbyte
Work memory	: integrated 25 Kbyte
Load memory	: integrated 1 Mbyte
CPU/ blocks Number of blocks (total) DBs, FCs, FBs, counters, timers)	: Up to 65,535 blocks can be addressed. There is no limit, use of the entire work memory
Data areas and their retentively retentive data area	: 2048 byte
Digital channels	• integrated channels (DI) 6 DC • integrated channels (DO) 4 DC mosfet
Analog channels	: Integrated channels (AI) 2,10bit resolution
Time of day Clock	: Hardware clock (real-time clock) Yes
1st interface Type of interface	: Ethernet with PROFINET protocol
Time of day Clock	: Hardware clock (real-time clock) Yes
1st interface Type of interface	: Ethernet with PROFINET protocol
Digital inputs Number of digital inputs	: 6; Integrated 6; of which, inputs usable for technological functions 3; HSC (High Speed Counting)
High-speed outputs	: 2; 100 kHz Pulse Train Output
Number of counters	: 3 Counter frequency (counter) max. 100 kHz

Analog potentiometers for PLC	: 2nos with dial marking
Digital output connectivity	: 4 nos double pole 24v relay with potential free terminology and direct 4mm banana connector for 24v side
Digital input connectivity	: 6nos industrial standard connectivity with 4mm banana connector with industrial grade push button and selector
Featured option	: PLC must contain the program for Modbus TCP/IP master
