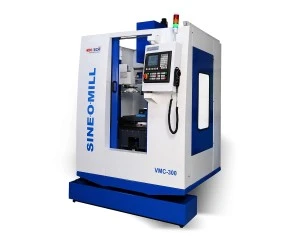

Machine Specifications:

Model	VMC-300
X – Axis Travel	: 350 mm
Y – Axis Travel	: 275 mm
Z – Axis Travel	: 300 mm
Distance from Spindle
Nose to Table Top	: 70 - 300 mm
Traverse Screws	: Ball Screw Dia 32 x 10
Table Size	: 550 x 325 mm
Max. Load on table	: 120 kgs
Clamping Area	: 450 x 250 mm
Spindle Bore Taper	: BT 40
Spindle Speed	: 100-3000 RPM
Spindle Motor Power	: 5 HP, AC
Spindle Motor Drive	: 5 HP VFD HP
X & Y Axis	: 8 & 8 m/min
Rapid Traverse Rate Z Axis	: 8 m/min
Cutting Feed Rate X & Y	: 1 - 5000 m/min
Cutting Feed Z	: 1 - 5000 m/min
Controller	: Siemens 808 D Basic
Motors & Drives X & Y	: 4 NM Servo
Motors & Drives Z	: 7 NM Servo
Accuracy	: 0.01 mm
Repeatability	: ± 0.005 mm
Resolution	: 0.001 mm
Min. Input Inmrement	: 0.001 mm
Front x Side	: 1500 x 1700 mm
Machine Weight (Approx)	: 2500 kg
Main Supply	: 415 VAC, 3 Ph, 50 Hz

Features:

AC servo drives
AC variable speed spindle motor
Hardended and ground ball - screws
Centralised automatic lubrication
Basic coolant system
Telescopic covers and bellow on Z-axis
Full Machine guard
Manual pulse generator

G-Code Book
