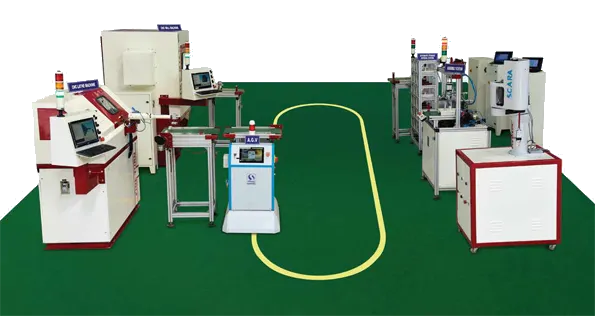

Computer Integrated Manufacturing ( CIM ) Setup


Computer Integrated Manufacturing ( CIM ) Setup

CIM Setup:

The Integration of the total manufacturing enterprise through the use of integrated systems and data communications coupled with new managerial philosophies that improve organizational and manufacturing efficiency.

CIM Setup Comprises of:

  • CNC Lathe Trainer with Loading Arm
  • CNC Mill Trainer with Loading Arm
  • ASRS
  • Automated Guided Vehicle
  • Pallet Conveyors
  • Assembly Station
  • Vision Inspection System ( Quality Control Station )
  • 6 Axis Robot
  • SCARA Robot
  • Cordinate Meausrment Machine
  • Electronic Height Gauge

Software Architecture:

Interfaces with a variety of machines and robots by means of device drivers (small interface programs that translate and transmit messages between the CIM manager and the machines at CIM stations).

Stores all data in standard industrial database format, allowing easy access and manipulation on any level. Data files can be read by any Windows application (e.g., Excel, Access, MS-SQL) and exported to any other application. Easily imports and uses data files from external applications.

Integration of System and Technologies:

  • Material storage and feeding (ASRS, feeders, palletizing racks)
  • Material handling (robots, conveyors, slidebases, pneumatic transfer units, Positioning tables,vises, end effectors and tool changers)
  • CNC machining (turning, milling, engraving, automatic tool changers)
  • Pneumatic and hydraulic systems (manipulators, Chucks, feeders, vises)
  • Identification, detection and tracking (RFID scanning, pallet tracking, sensors, Switches)
  • Quality control (machine vision, coordinate measuring machine, electronic height Gauge)
  • Programmable logic controllers (PLC)

Dynamic 3D Graphic Simulation:

  • Fully functional, dynamic 3D simulation module
  • Accurately simulates operations and movements of machines, robots and peripheral axes, including components such as safety Doors, chucks and spindles
  • Accurately simulates part transportation and manipulation, including movement of pallets on conveyor and supply of parts from storage cells and feeders
  • Accurately simulates manufacturing processing, including milling, turning, engraving
  • View control: zoom in and out, rotate (pan), view from above, below and any angle in between; camera redirect (reset camera's focal point), drag camera
  • Improves comprehension of CIM management and manufacturing processes by viewing 3D graphic dynamic on-screen simulations
  • Allows programming and operation of the CIM system without causing damage to actual equipment or disrupting operation of the actual CIM cell
  • Enables experimentation with CIM cells in which some components actually operate while others are simulated

CIM Components:

cnc-lathe-trainers-with-pc-based-controllerCNC Lathe Trainer

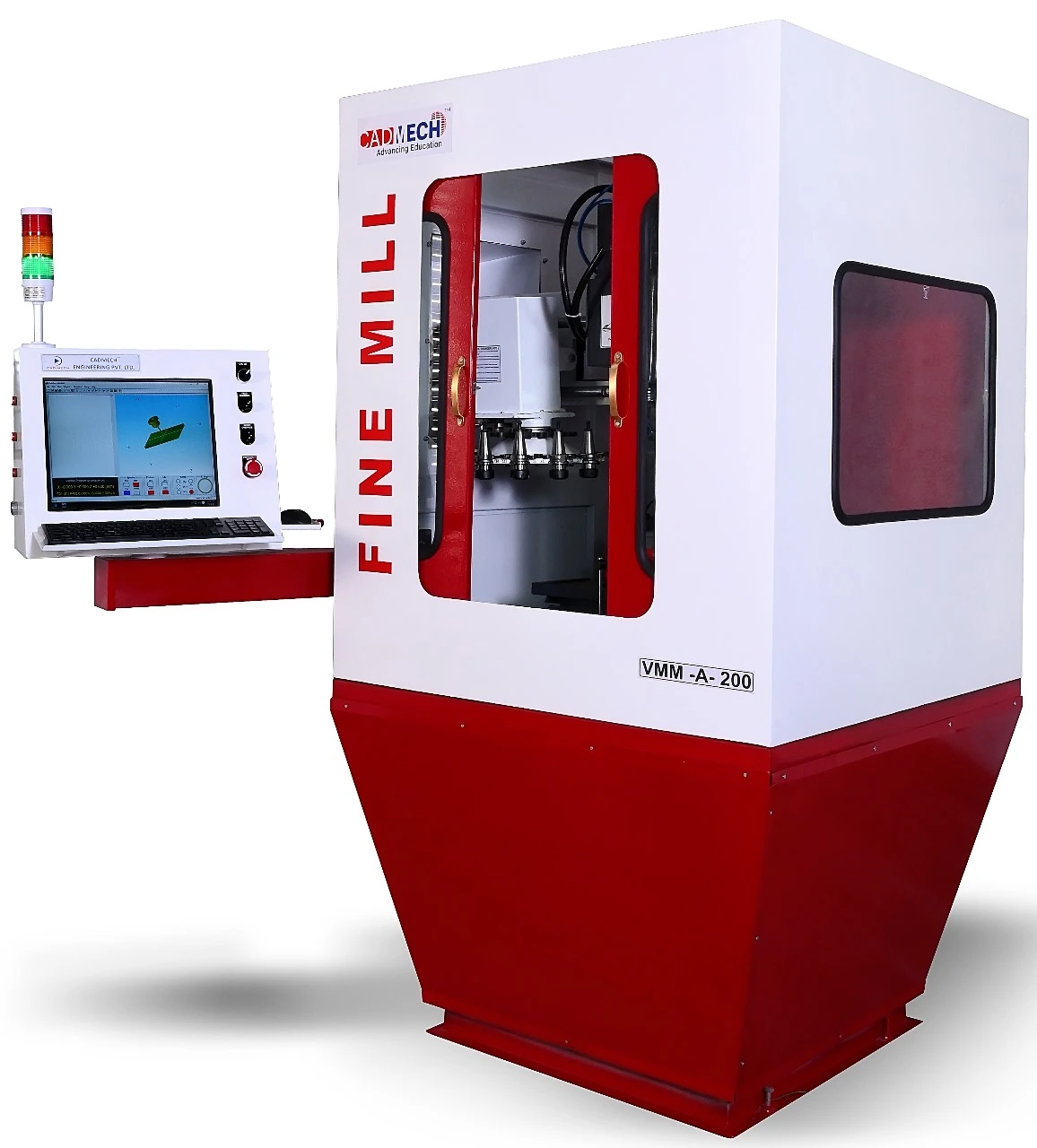

cnc-mill-trainers-with-pc-based-controller-1 CNC Mill Trainer

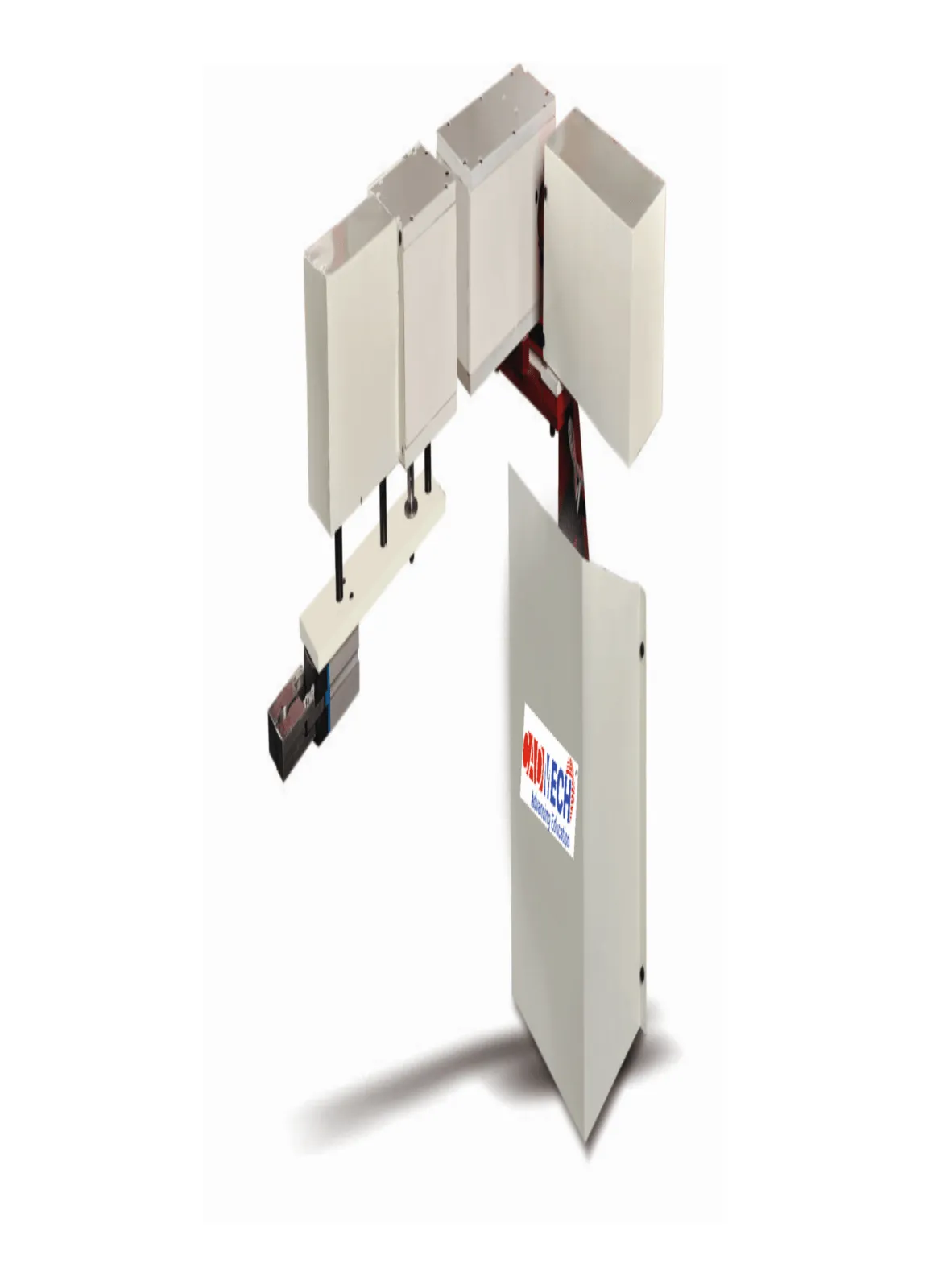

loading-and-unloading-arm-for-lathe-trainers-1Loading Arm for Lathe

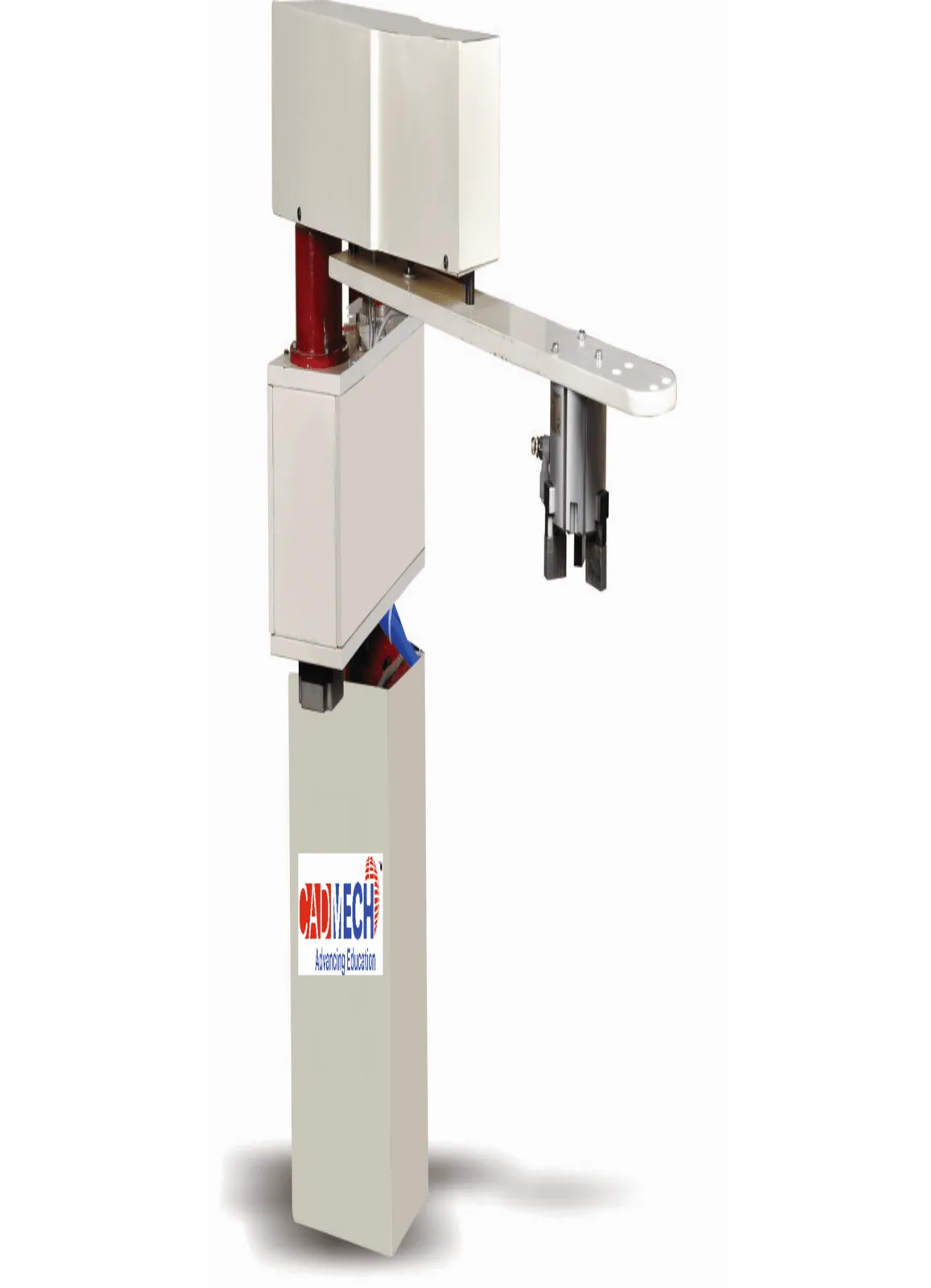

loading-and-unloading-arm-for-mill-trainers-1 Loading Arm for Mill
pallet-conveyorPallet Conveyors
assembly-station-1 Assembly Station
vision-inspectionVision Inspection
6-axis-robot-trainers-16 Axis Robot

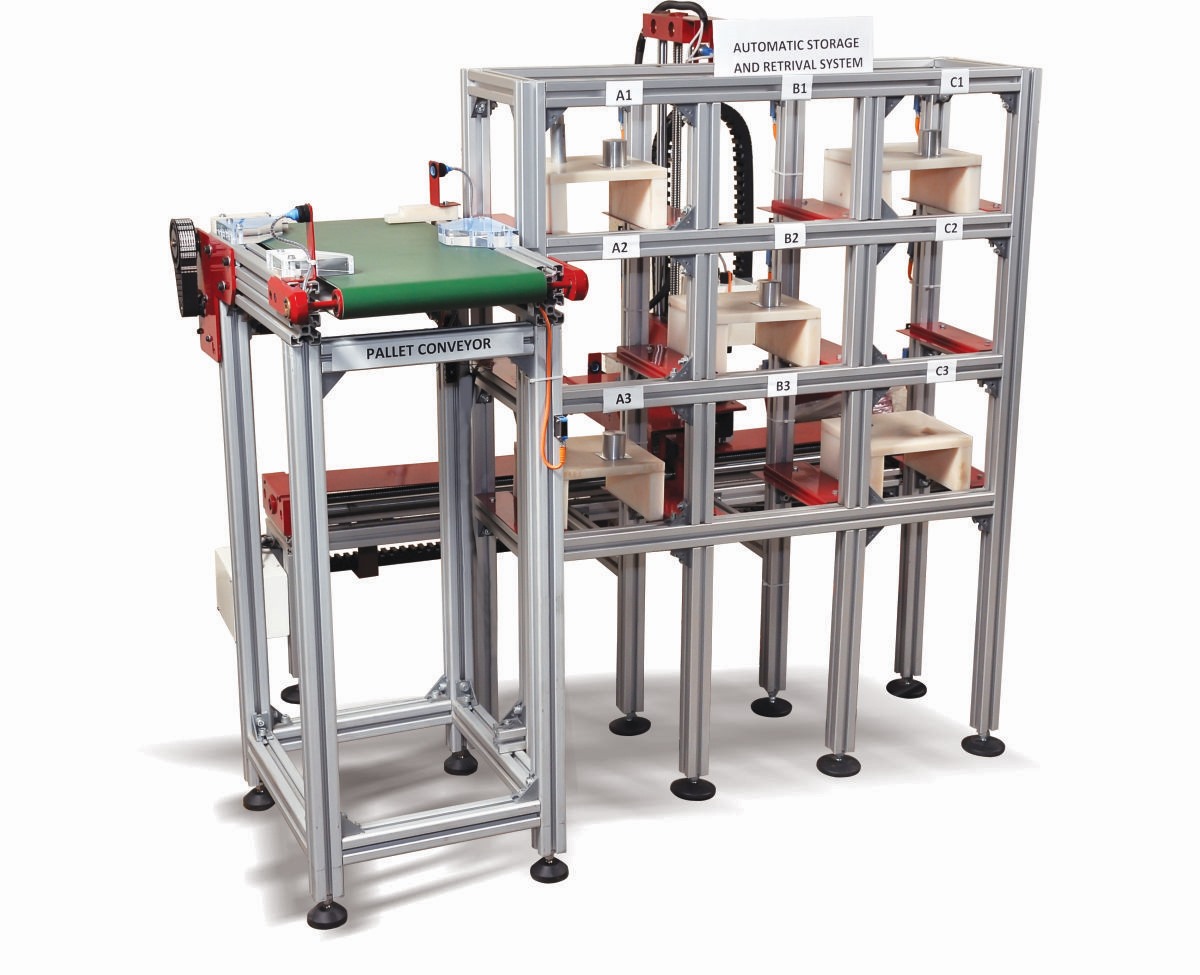

automatic-storage-and-retrieval-systemsASRS

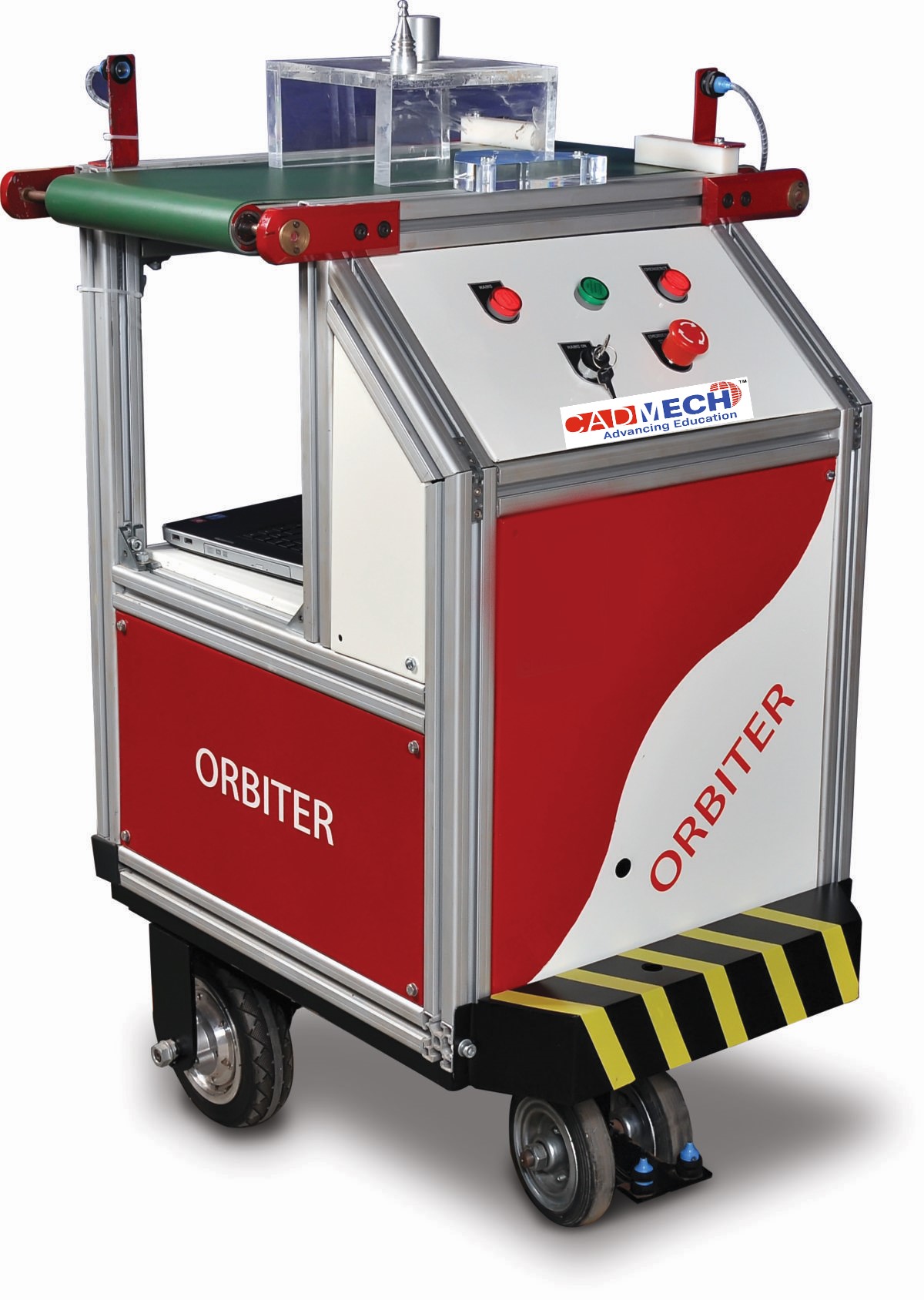

automated-guided-vehicle-1 AGV
scara-robot-1Scara Robot
linear-shuttle-conveyor Linear Shuttle Conveyor

Our Successful Installation of CIM Setup

...
G. H. Raisoni Institute of Engineering and Technology , Wagholi , Pune , MH

Successful installation of CIM Setup at G. H. Raisoni Institute of Engineering and Technology , Wagholi , Pune , MH

...
G. H. Raisoni Institute of Engineering and Technology , Jalgaon , MH

Successful installation of CIM Setup at G. H. Raisoni Institute of Engineering and Technology , Jalgaon , MH

...
G. H. Raisoni College of Engineering , Nagpur , MH

Successful installation of CIM Setup at G. H. Raisoni College of Engineering , Nagpur , MH

...
Chaitanya Bahuuddeshiya Sansthas G. H. Raisoni College of Engineering and Technology , Amravati , MH

Successful installation of CIM Setup at Chaitanya Bahuuddeshiya Sansthas G. H. Raisoni College of Engineering and Technology , Amravati , MH

...
Abdul Kalam Technical University , Lucknow , UP

Successful installation of CIM Setup at Abdul Kalam Technical University , Lucknow , UP

...
Kamla Nehru Institute of Technology , Sultanpur, UP

Successful installation of CIM Setup at Kamla Nehru Institute of Technology ,Sultanpur ,UP

Description :-

Computer-Integrated Manufacturing (Cim) Is The Manufacturing Approach Of Using Computers To Control Entire Production Process. It Helps Industries To An Eye On Manufacturing Pricesses & Thereby Increase Productivity.
