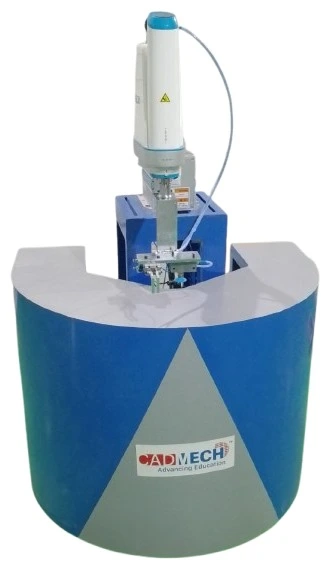

Cadmech Engineering Pvt. Ltd. is one of the leading manufacturers of Scara Robot

Features:

Design	: 4 Axes, external Oriented horizontal articulated arm
Pay Load	: 1.5 kg
Reach	: 425 mm
Axis	: 20 Meters / Minute max.
1. Waist (J1)	: 270
2. Shoulder (J2)	: 135
3. Elbow (J3) with Ball Screw	: 120 mm
4. Roll (J4)	: 360
Link 1	: 225 mm
Link 2	: 220 mm
Joint Actuator	: Stepper Motor with Gear Box
Controller	: USB Based Motion Controller
Safety	: Micro Switches for Home and Axis Limits
I/O	: 8 nos.
Power	: 230 VAC, 50 Hz, Single Phase
